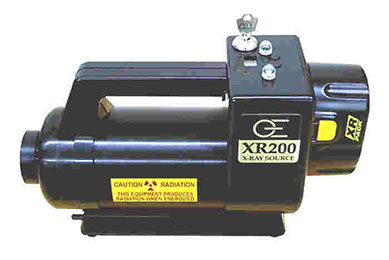

GOLDEN ENGINEERING XR200 X-RAY SOURCE

The XR200 X-ray source was introduced in 1997 as a replacement for the INSPECTOR® X-ray source Model 200.

XR200 SPECIFICATIONS
XR200 Size:  XR200 Radiation Leakage:
7.5" (790mm) high x 4.5" (115mm) wide x 12.5" (318mm) long 3 mR per 100 pulses measured 2 inches behind the unit
XR200 Weight:  XR200 Exposure Control:
12lbs (5.4kg) with battery LCD can be set for 1-99 pulses
XR200 DC Mode:  XR200 Source Size:
14.4V removable, rechargeable nickel cadmium battery, 4000 pulses per charge 3 mm nominal
XR200 Battery Recharge Time:  XR200 Time Delay:
1 hour recharge with supplied external battery charger Push button triggering of 15 or 60 seconds delay-allowing time to leave area before unit fires
XR200 Pulse Rate:  XR200 Output Dose:
25 pulses per second nominal 3.1 mR/pulse +/- 0.5 mR @ 1' w/filtration equivalent of 2.5mm of aluminum
XR200 Pulse Length:  XR200 Maximum photon energy:
60 nanoseconds 150 kV
XR200 Maximum Pulses:  XR200 Warranty:
3,000 per hour Unit warranty-1 year limited
